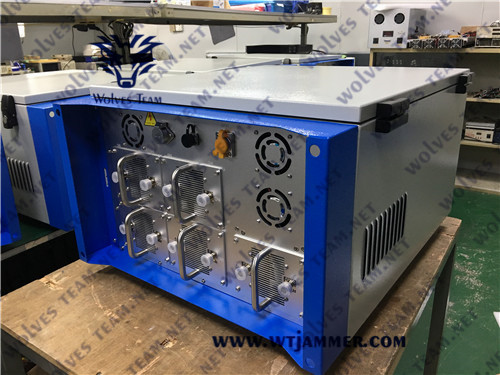

Powerful GSM 3G 4GLTE 4GWimax 5G WIFI Cell Phone Jammer Blocker
Product Description:
At a Glance:
- Total 380W High Power
- Each band can work independently
- Each bands is adjustable
- Housing Waterproof & shockproof design suitable indoor or outdoor
us
Separate switch for each band, accompanied with a working LED
Light.
Simple battery replacement.
Inside cooling fans and heat sink design ensure the device to work
continuously. The device surface temperature does not exceed 40 °C
after long time working.
Applications:
High quality jammers widely use in Military Units, Prison, Police,
Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard,
Schools, Churches, Invigilate Meeting Room, Library, Hospitals,
Theater, Class Room and other important places and situations.
Specification:
| Output Interface | Output Frequency | RF Output |
| CH1 | CDMA 800: 850 to 894MHz | 50W |
| CH2 | GSM 900: 925 to 960MHz | 50W |
| CH3 | GSM 1800: 1805 to 1880MHz (DCS) | 50W |
| CH4 | 3G: 2110 to 2170MHz | 50W |
| CH5 | 4G LTE: (USA:725-770MHz) or (Europe:790-826MHz) | 50W |
| CH6 | 4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz) | 50W |
| Total RF Power | 300Watt, Max: 350Watt |
| Power supply | AC220V |
| Shielding area | 50 to 300m ( signal strength <=75dbm.) |
| Jammer Module Number | 6 |
| Antenna Type | 4pcs External high gain ( 3-4dBi ) omnidirectional ( Standard ) |
| Weight | 18.00 Kg |
| Size (length x wind x high) | 36*56*27 cm |
| Humidity | 30%-95% |
| Running Temperature | -20 to +55 Celsius Degree |
Cellular phones standards
Computer communication standards 2.4Ghz
• WLAN Bluetooth Wi-Fi. Satellite communication systems
• Thuraya Iridium Elipso Inmarsat GlobalStar
• Aces Odyssey GPS
CDMA450 Cellphone System
• (430-450/460-470 MHz)
Accessories:
- Power cable
- Antennas
- User manual
Advantages and Features
· Aluminum-alloy casing with high protection has high resistance to
dust, water and corroding.
· Heat sink designing combing with the fans to make system in a
cooling status.
· Special technology to prevent interference between each frequency
band.
· Only interfere downlink frequency of mobile system, without
disturb normally working of Base Stations.
· Frequency bands and output power selectable.
· Each frequency band controlled by independent RF ON/OFF switches.
· Power of each frequency band can be adjustable independently.
· Circuit protection to ensure system will not burn out in case of
antenna short circuiting or disconnection.
· Antenna type options, directional or omni-directional antennas
option.
· Easy operation and installation.
· Keep for upgrade module installation.
· Working 24 hours/365days continuously.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from
date of receipt of confirmed purchase order and advance remittance
in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
