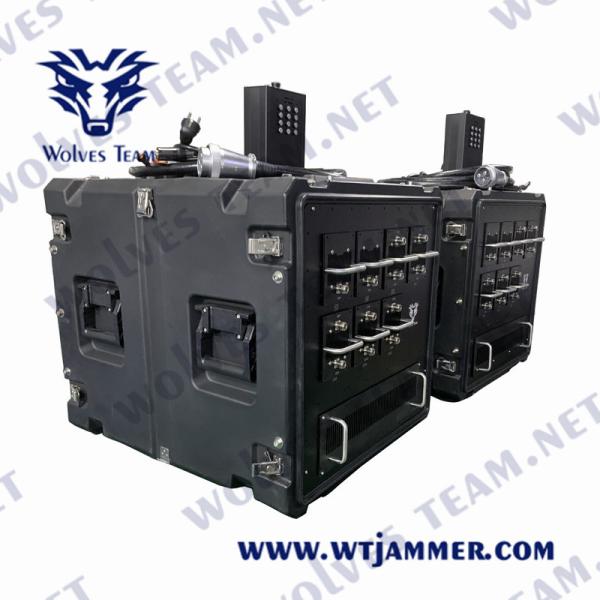

VIP Protection Vehicle Jammer Portable GSM WIFI GPS 3G 4G 5G All
Cell Phone Signal Jammer
Product Description
We have 4-20 bands frequenices optional of this high power cell
phone signal jammer.With jamming distance up to 500-1000
meters,this high power GSM CDMA PCS DCS 3G 4GLTE 4G Wimax 5G WIFI
GPS VHF UHF and Lojack Customized jammer is very competative.
This is a high power efficient jamming device can be used to block
unwanted signals in occasions such as VIP convoy protection,
military rehearse, municipal hall, police check point, prison,
disposal bombs, as well as vehicle mounted to block remote
controlled explosive devices.
Advantages and Features
1, Designed with ultra broadband frequency bands, 20MHz-3600MHz
(20-6000MHz).
2, 12 modules plug and play design, facilitate for future power
upgrading,change and maintenance. Any
ruin on the modules never interfere the normal operating of other
modules.
3, American Mil-spec standard case, shockproof and drop-resistance,
available for the vehicle running in a
worse field environment.
4, Up to 20 Frequency Bands. All Jamming Modules Designed by DDS
technology.
5, Operators are able to regulate the working frequency band and
output power of each module through the
software. Configuring a specific frequency band can ensure the
internal communication in emergency.
6, System operation can be performed in the driver's console unit.
Each module can be ON/OFF. Backup
battery or generator system can be optional.
7, Equipped with high power generator to ensure excellent low noise
operational capabilities.
8, Integrated backup battery system for continuous silent operation
and fast start.
9, Integrated smart active cooling system to make sure the device
working continuously.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -CDMA: 851-960MHz /-GSM: 925-960MHz |
| CH2 | -DCS: 1805-1880MHz |
| CH3 | -PCS: 192-1990MHz |
| CH4 | -3G: 2110-2170MHz |
| CH5 | -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU) |
| CH6 | -4G LTE: 725-770MHz(US) or 790-826MHz(EU) |
| CH7 | -5G:3200-3600MHz |
| CH8 | -5G:3600-4200MHz |
| CH9 | -VHF: 135-175MHz |
| CH10 | -UHF: 400-470MHz |
| CH11 | -WiFi: 2400-2500MHz |
| CH12 | -GPS: 1500-1600MHz |
| Jammed Signal Freqency: | CDMA,GSM,PCS,DCS,3G,4G,5G,2.4G WIFI,5.8G WIFI,GPS L1,GPS
L2-L5,VHF,UHF.... |
| Type: | Portable jammer |
| Output Channel: | 12 output channels |
| Output power: | 1000 watt |
| Parameter Shielding Range: | Radius 100-1000 meters (-75dBm,depending on the distance of base
station in an open filed) |
| Jammer Module Number | 12 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Technical Parameters: |
| Net Weight | 50kg |
| Total Weight | 55 kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery
can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi/6-9bBi |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of
receipt of confirmed purchase order and advance remittance in our
bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
OEM/ODM
Wolvesteam are offer unparalleled professional service and advice
for our personal and commercial products. More than 10 years of
industry experience.
And Wolvesteam also has more than 10 years OEM/ODM experiences, we
have very professional technicians and designers in USA.Normally we
can print the logo and design the products per customer's
requriement.Our professional workers and production lines,enabling
us to meet your products requirements.
We always looking for sincere and mutual cooperation with customers
all over the world.We can be your best suppliers,we are capable in
providing OEM and ODM services.
